Bosch-FHP Geothermal Heat Pumps
Bosch-FHP Geothermal RP Model - Residential
|
*Water-to-Air, Two Stage,
*Available in 2 thru 6 tons, *VERTICAL *HORIZONTAL *SPLIT CONDENSING SECTION 10 year parts and labor allowance warranty *Energy Star Tier 3
This Geothermal Unit
Qualifies for the 30% Federal Energy Tax Credit (must be installed before 1/1/2026) |
|

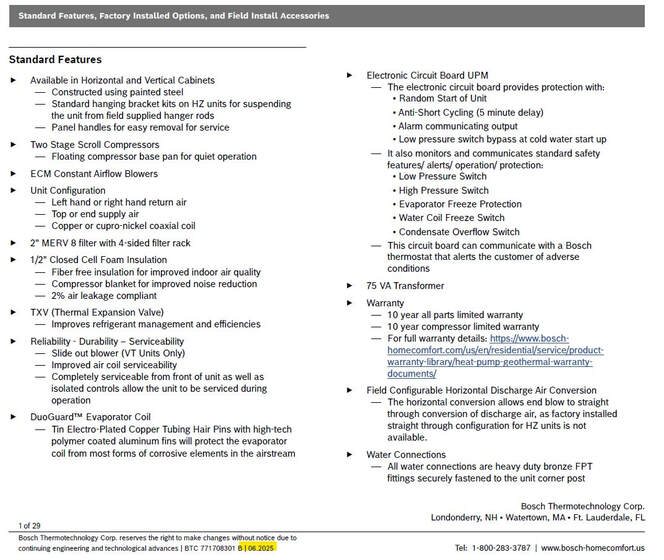

Standard Features for RP Vertical and Horizontal Package Units

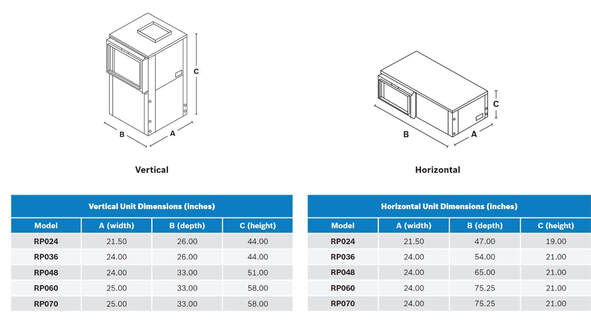

RP Package Unit Dimensions

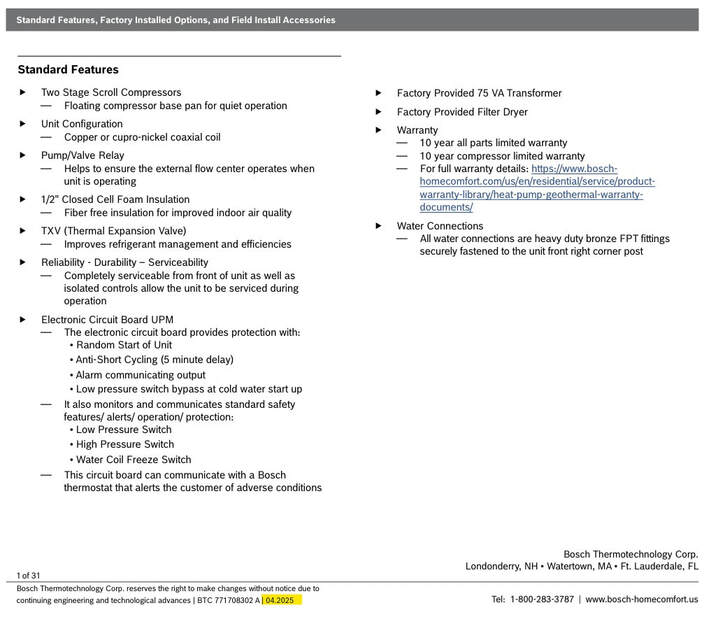

Standard Features for RP SPLIT CONDENSING Section

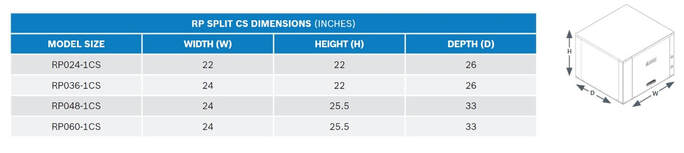

RP Condensing Section Dimensions
Bosch Geothermal RP Models |
Options |
|
RP024 - 2 TON
RP036 - 3 TON RP048 - 4 TON RP060 - 5 TON RP070 - 6 TON (VT & HZ only, no condensing section in the 6ton size) Electrical Characteristics: 208-230/1/60 |
> Cupro-Nickel Water Coil for Open Loop Application
> Desuperheater (Heat Recovery Package) > Field Install Internal Electric Heat Packages (5kw-20kw) > Field Install Smart Start > Field Install Pump/Valve Relay (Standard on RP condensing sections) |
RP Documentation

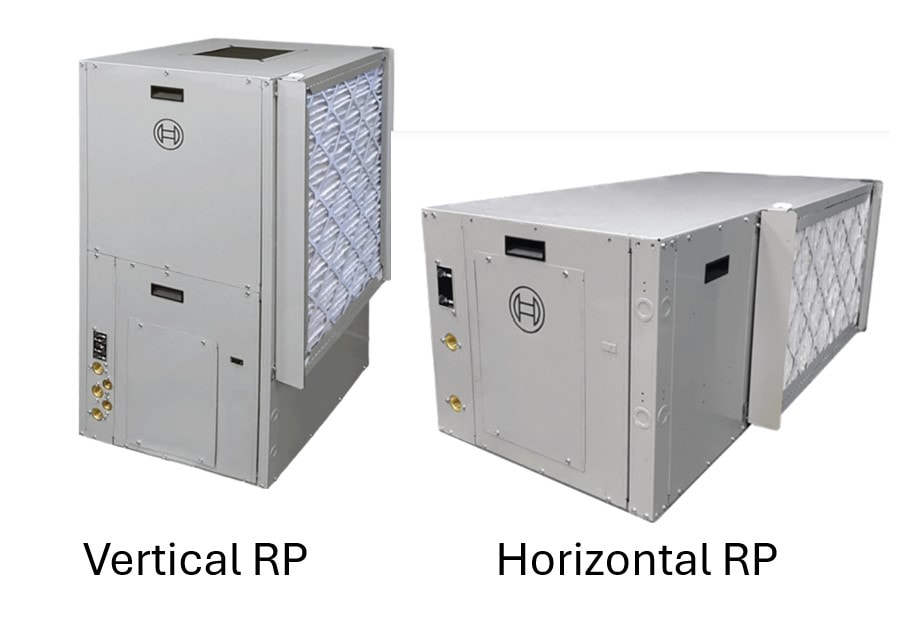

Vertical & Horizontal Package Models
> RP VT/HZ Install Manual (4/2025) - click here
> RP VT/HZ Engineering Submittal (6/2025) - click here
> RP One Page (2024) - click here
Split Condensing Section
> RP Condensing Section Install Manual (7/2025) - click here
> RP Condensing Section Engineering Submittal (4/2025) - click here
> RP VT/HZ Install Manual (4/2025) - click here
> RP VT/HZ Engineering Submittal (6/2025) - click here
> RP One Page (2024) - click here
Split Condensing Section
> RP Condensing Section Install Manual (7/2025) - click here
> RP Condensing Section Engineering Submittal (4/2025) - click here
We make an effort to be clear and accurate based on the information provided by Bosch/FHP. However, specifications and performance data is subject to change without notice. Click below for the most up to date information.
