Bosch / FHP Geothermal Heat Pump
Model Dimensions and Filter Sizes
(Old and Current Models)

Will my new geothermal heat pump fit the same dimensions as my old unit?
See below for the dimensions of many of the FHP / Bosch geothermal heat pump models.

Listed below are the Bosch/FHP geothermal heat pump width, depth, height, filter size, water connection pipe size (FTP),
AHRI open and closed loop ratings, and Amps draw/max.

Models are listed by size, then alphabetically by model.
Current models are listed first, followed by discontinued models.  Discontinued models have been noted.

Please note, we made these lists as a convenience to you.  We have tried hard to be as accurate as possible.
We apologize if there are mistakes, please verify exact model data with Bosch Thermotechnology.

VERTICAL
models>>>

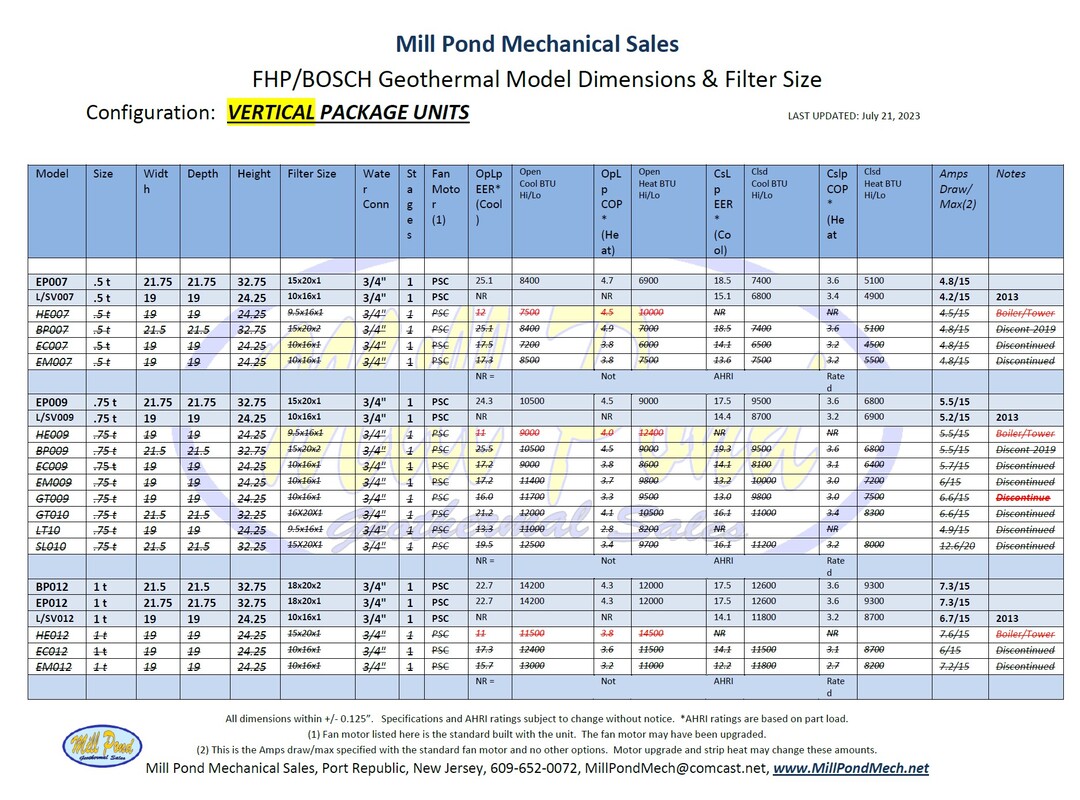

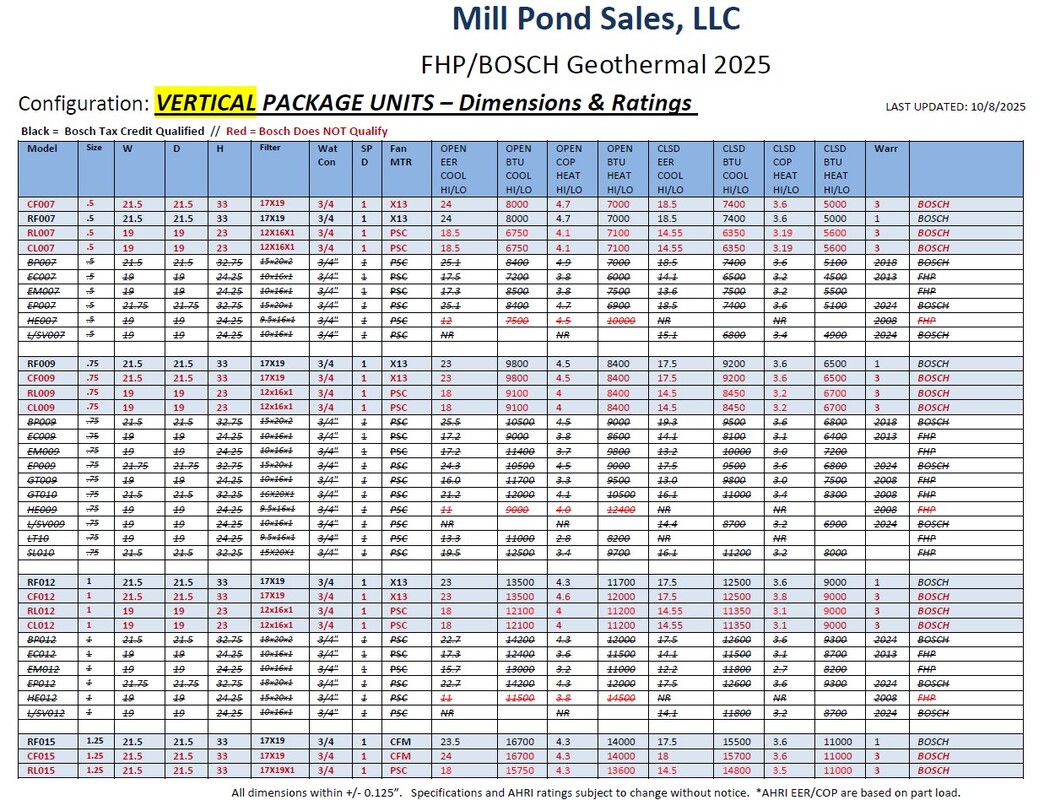

Dimensions for Bosch & FHP Geothermal Heat Pump VERTICAL Models:
AP, BP, CE, CP, EC, EM, EP, ES, EV, GO, GS, GT, HE, LM, LT, SL, SM, SV, SX, TA

Models are listed by size, then alphabetically by model. Current models are listed first, followed by discontinued models.   Discontinued models have been noted.

CLICK HERE to view and/or download the Mill Pond list of VERTICAL package dimensions.

This link will display the same document as above as a .pdf and lists the FHP/Bosch vertical package models, size, dimensions, filter size, fan motor type, compressor stages, and open and closed loop BTU, EER, and COP.
​






HORIZONTAL
models>>>

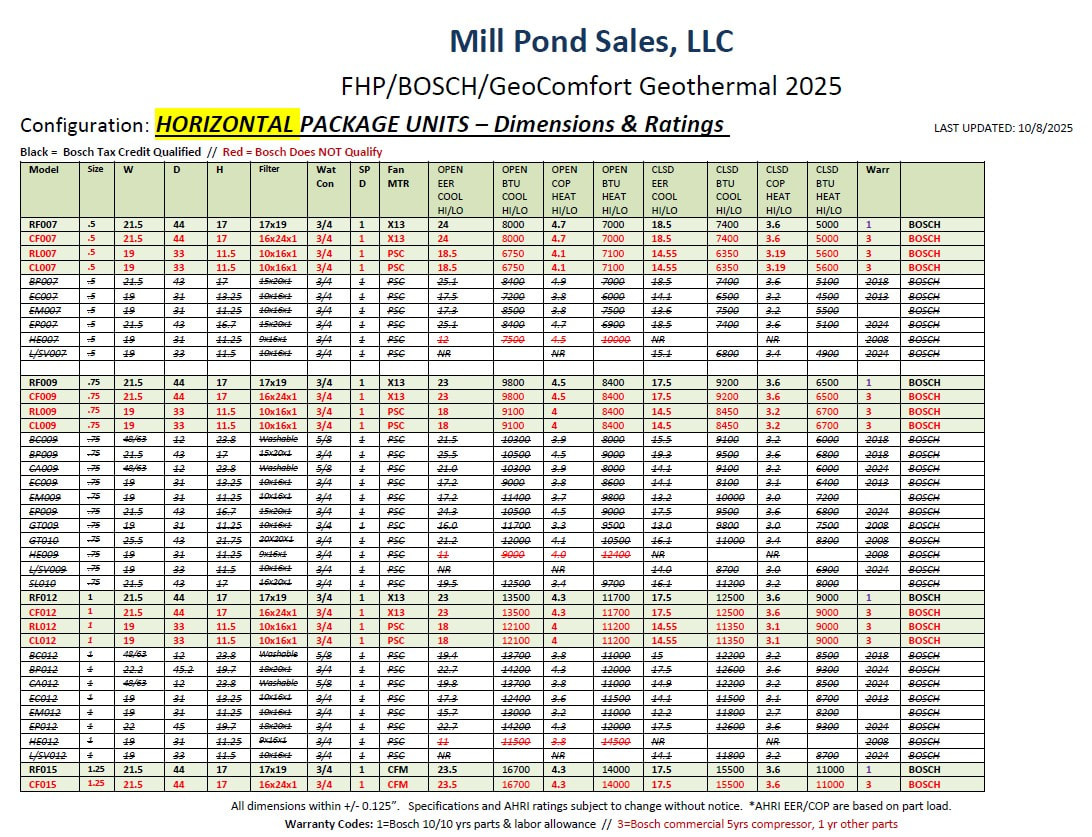

Dimensions for Bosch & FHP Geothermal Heat Pump HORIZONTAL Models:
AP, BC, BP, CA, CE, CP, EC, EM, EP, ES, EV, GO, GS, GT, HE, LM, LT, LV, QV/WQ, SHE, SL, SM, SV, SX, TA


Models are listed by size, then alphabetically by model. Current models are listed first, followed by discontinued models. Discontinued models have been noted.

---

CLICK HERE to view the horizontal dimensions of FHP/Bosch Geothermal heat pumps.

This link will display the same document as above as a .pdf and lists the FHP/Bosch horizontal package models, size, dimensions, filter size, fan motor type, compressor stages, and open and closed loop BTU, EER, and COP.

---

VERTICAL
AIR HANDLERS  >>>>>

Dimensions for Bosch & FHP Geothermal Heat Pump Vertical Air Handler Models:
AP, AU, CE, DX, EC, EM, ES, EV, GS, GT, LM, SM, SV, TA


Models are listed by size, then alphabetically by Current and Discontinued models. Discontinued models have been noted.

HORIZONTAL
AIR HANDLERS  >>>>

Dimensions for Bosch & FHP Geothermal Heat Pump HORIZONTAL Air Handler Models:
AP, AU, CE, DX, EC, EM, ES, EV, GS, GT, LM, SM, SV, TA

Models are listed by size, then alphabetically by Current and Discontinued models. Discontinued models have been noted.
