Bosch-FHP Geothermal Heat Pumps
Bosch-FHP Geothermal RF Model - Residential
|
Water-to-Air, Two & Single Stage,
Available in .5 thru 6 tons, Vertical, Horizontal, Counterflow 10 year parts and labor warranty Energy Star Tier 3
This Geothermal Unit
Qualifies for the 30% Federal Energy Tax Credit (Must be installed by 12/31/2025) |
|

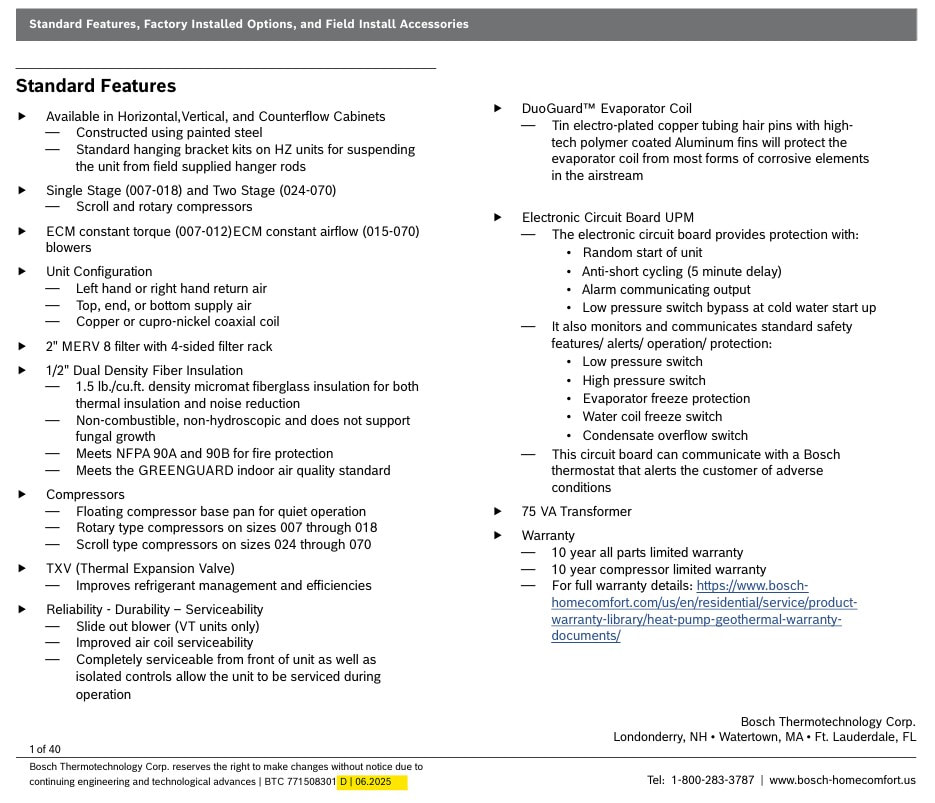

Bosch RF Model Features

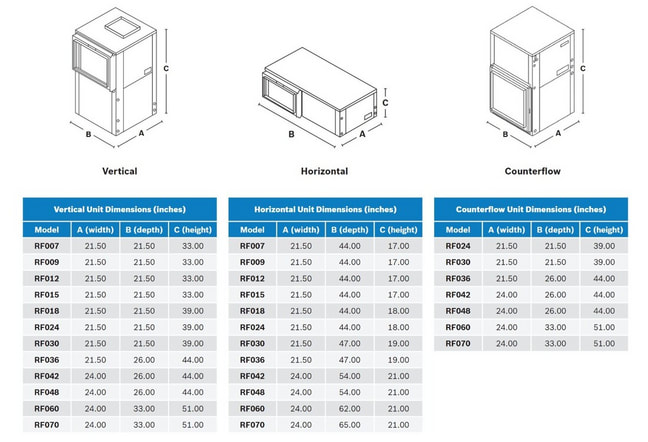

RF Model Dimensions
Bosch Geothermal RF models |
Options: |
|
RF007 - .5 TON SINGLE STAGE, VT & HZ
RF009 - .75 TON SINGLE STAGE, VT & HZ RF012 - 1 TON SINGLE STAGE, VT & HZ RF015 - 1.25 TON SINGLE STAGE, VT & HZ RF018 - 1.5 TON SINGLE STAGE, VT & HZ RF024 - 2 TON 2-STAGE, VT, HZ & CF RF030 - 2.5 TON 2-STAGE, VT, HZ & CF RF036 - 3 TON 2-STAGE, VT, HZ & CF RF042 - 3.5 TON 2-STAGE, VT, HZ & CF RF048 - 4 TON 2-STAGE, VT, HZ & CF RF060 - 5 TON 2-STAGE, VT, HZ & CF RF070 - 6 TON 2-STAGE, VT, HZ & CF Electrical Characteristics: 208-230/1/60 |
> Cupro-Nickel Water Coil for Open Loop Application
> Field Install Internal Electric Heat Packages (5kw-20kw) > Desuperheater (HRP) > Field Install Fan/Pump Interlock Relay RF Documentation> RF Install Manual (12/2024) - click here
> RF Engineering Submittal (06/2025) - click here > RF Marketing Brochure (2024) - click here > RF Spare Parts (2/2025) - click here > RF Warranty (1/2024) - click here |
We make an effort to be clear and accurate based on the information provided by Bosch/FHP. However, specifications and performance data is subject to change without notice. Click below for the most up to date information.
