Bosch-FHP Geothermal Heat Pumps

---

Bosch-FHP Geothermal CP Model - Commercial

---

*Water-to-Air,  Two Stage,
*Available in 2 thru 6 tons,
*VERTICAL
*HORIZONTAL
* SPLIT CONDENSING SECTION
*5yrs compressor / 1 yr other parts warranty

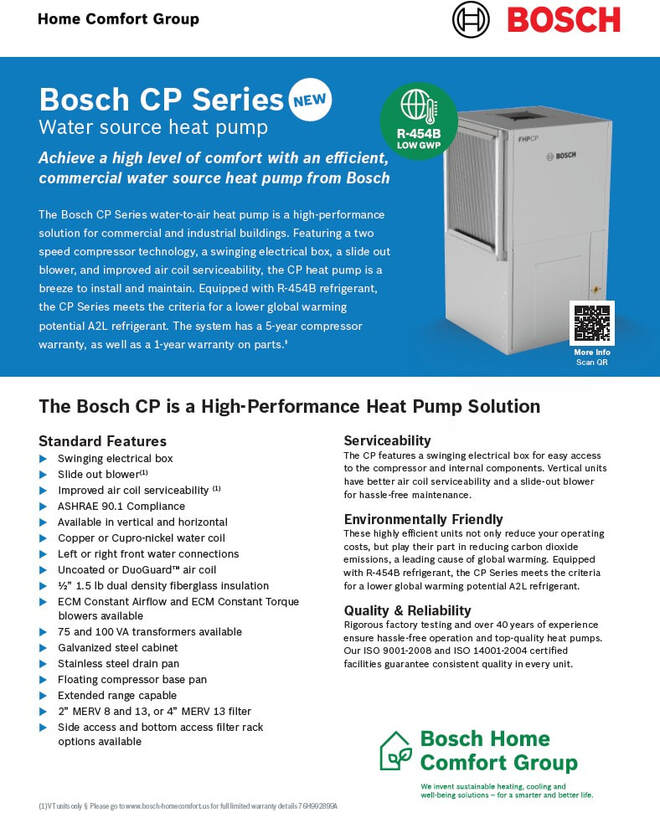

Standard Features for CP Vertical and Horizontal Package Units

---

CP Vertical/Horizontal Models

CP024-1 - (2) TON  Electrical:  208-230/1/60
CP024-2 - (2) TON  Electrical:  265/1/60
CP024-3 - (3) TON  Electrical:  208-230/3/60
CP024-4 - (3) TON  Electrical:  460/3/60
CP036-1 - (3) TON  Electrical:  208-230/1/60
CP036-2 - (3) TON  Electrical:  265/1/60
CP036-3 - (3) TON  Electrical:  208-230/3/60
CP036-4 - (3) TON  Electrical:  460/3/60
CP048-1 - (4) TON  Electrical:  208-230/1/60
CP048-3 - (4) TON  Electrical:  208-230/3/60
CP048-4 - (4) TON  Electrical:  460/3/60
CP060-1 - (5) TON  Electrical:  208-230/1/60
CP060-3 - (5) TON  Electrical:  208-230/3/60
CP060-4 - (5) TON  Electrical:  460/3/60
CP070-1 - (6) TON  Electrical:  208-230/1/60
CP070-3 - (6) TON  Electrical:  208-230/3/60
CP070-4 - (6) TON  Electrical:  460/3/60

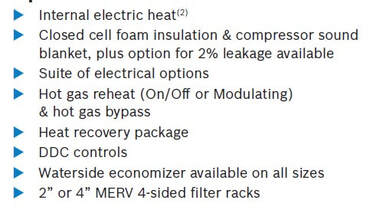

CP Vertical/Horizontal Options

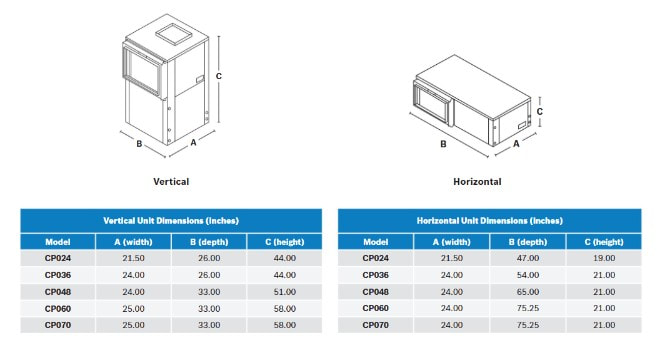

CP Package Unit Dimensions

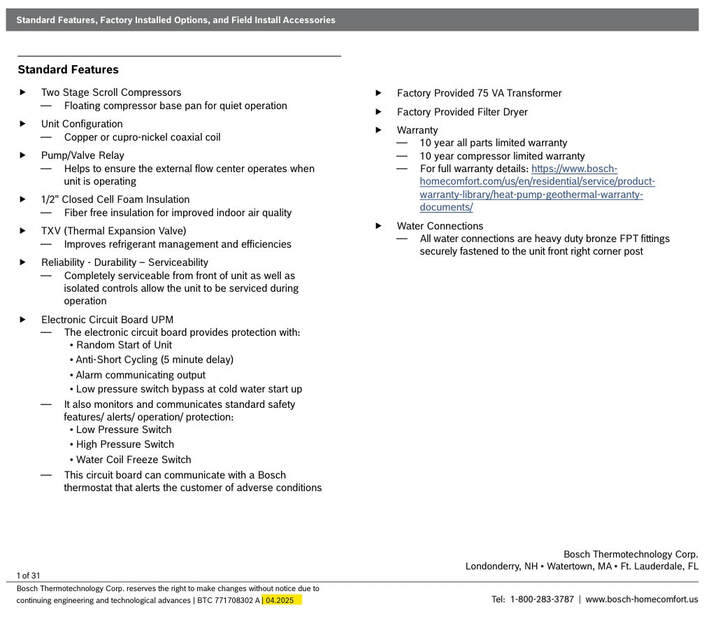

Standard Features for CP SPLIT CONDENSING Section

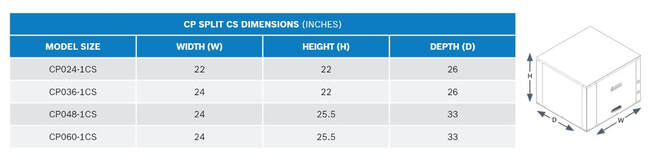

CP Condensing Section Dimensions

---

CP Documentation

Vertical & Horizontal Package Models
> CP VT/HZ Install Manual (4/2025) - click here
> CP VT/HZ Engineering Submittal (6/2025) - click here
> CP One Page (2024) - click here

Split Condensing Section
> CP Condensing Section Install Manual (7/2025) - click here
> CP Condensing Section Brochure (2025) - click here
> CP Condensing Section Engineering Submittal (4/2025) - click here

We make an effort to be clear and accurate based on the information provided by Bosch/FHP.  However, specifications and performance data is subject to change without notice.  Click below for the most up to date information.

Click Here to go to the BOSCH CP web page
