Mill Pond Sales Distributors - Where to buy Bosch (FHP) Geothermal Heat Pumps & Parts
Bosch/FHP Residential Geothermal Models
Bosch-FHP Geothermal RP Model
Current Documentation from the Bosch Website: Vertical & Horizontal Packages: Engineering Submittal (12/2024) - click here RP Splits: Coming Soon |
*Water-to-Air, Two Stage Compressor, CFM Variable Speed Fan Motor

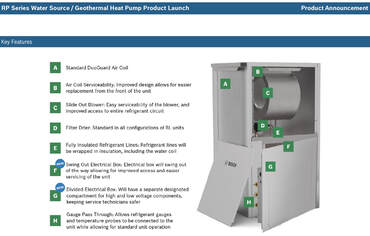

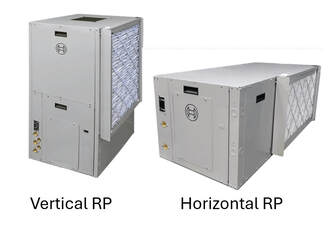

*Available in 2 thru 6 tons, whole ton increments *Vertical and Horizontal packages available. >> Split models due later this year *Very Quiet: The RP Series operates as low as 53 dBA. *Equipped with R-454B refrigerant *Heat Recovery Package (desuperheater) is optional. *Swinging electrical box, Improved air coil serviceability *Built with a copper water coil. May upgrade to a cupro-nickel water coil. *10 year parts and labor allowance warranty *Auxiliary Electric Heat kits available for Field Install *Energy Star Tier 3 *This model qualifies for the 30% Federal Energy Tax Credit *RP024, RP036, RP048, RP060, RP070 Specifications, performance, & install documents below |
****************************************************
Bosch-FHP Geothermal RF Model
|
*Water-to-Air,

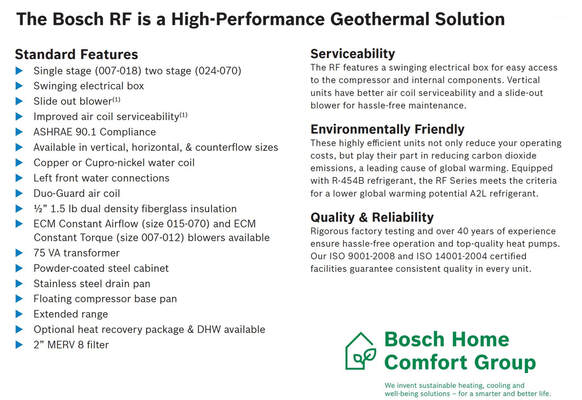

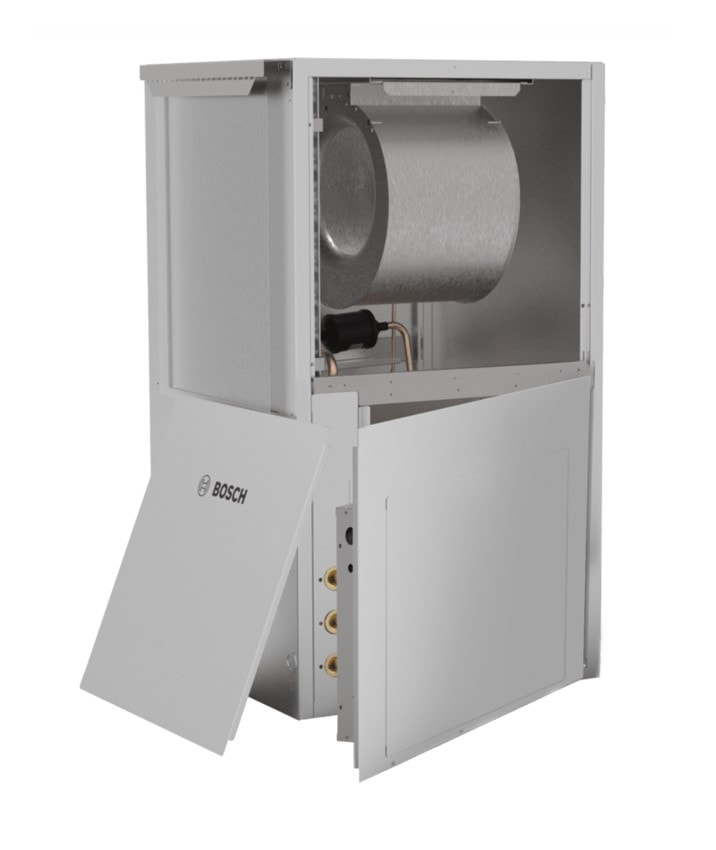

*Vertical, Horizontal, Counterflow Available *Built with a copper water coil. May upgrade to a cupro-nickel water coil. *Heat Recovery Package (desuperheater) is optional. *10 year parts and labor allowance warranty *Energy Star Certified *This model qualifies for the 30% Federal Energy Tax Credit Specifications, performance, & install documents - Click here (official Bosch page) |
RF Documents:
RF Spare Parts (02/2025) - click here
RF Engineering Submittal (03/2025)- click here
RF Installation Manual (12/2024)- click here
****************************************************
Bosch-FHP Water-2-Water Geothermal TW Model
|
*Water-to-Water, Two Stage Compressor
*Available in 2 thru 5 tons, & 10 tons, whole ton increments *Heat Recovery Package (desuperheater) is optional. *10 year parts and labor warranty *Energy Star Tier 3 *This model qualifies for the 30% Federal Energy Tax Credit *TW025, TW035, TW049, TW061, TW122 (the 6 ton TW071 was discontinued in 2021. For a 6 ton w2w unit see the Bosch/FHP WT071 under the Commercial models) Please Note: The TW model began production in 2011 with 410A refrigerant. In the fall of 2024 production was stopped to covert this model to use r454B refrigerant. Production resumed in March, 2025 with this new refrigerant.
|
TW Documents:
TW Engineering Submittal with r454B refrigerant (3/2025) - click here
TW Engineering Submittal (2/2022)- click here
TW Installation Manual (02/2016)- click here
TW Brochure (3/2020) - Click Here
TW Engineering Submittal with r454B refrigerant (3/2025) - click here
TW Engineering Submittal (2/2022)- click here
TW Installation Manual (02/2016)- click here
TW Brochure (3/2020) - Click Here
****************************************************
