Bosch-FHP Geothermal Heat Pumps

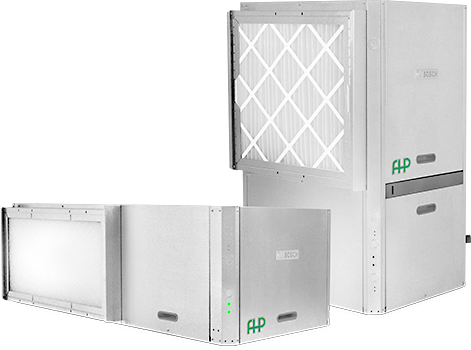

Bosch-FHP Geothermal LM Model - Commercial
|
Water-to-Air, Two Stage,
Available in 2 thru 6 tons, Vertical, Horizontal & Splits Available Warranty: 1 year parts & 5 years compressor
This Geothermal Unit
Qualifies for the 30% Federal Energy Tax Credit Note: The federal tax credit expired 12/31/2016
Documentation Bosch/FHP LM model Information
LM Brochure (5/2014) - click here LM Catalog - Specs & Performance (2016)- click here LM SPLIT Catalog - Specs & Performance (03/2016) - click here Bosch/FHP LM model Installation: LM Package Unit Install Manual - click here LM SPLIT Install Manual - Condensing (2014) - click here LM SPLIT Install Manual - Air Handler (11/2013) - click here Bosch/FHP LM model Dimensions: LM Vertical Dimensions (02/2014) - click here LM Horizontal (Straight-Thru) Dimensions (02/2014) - click here LM Horizontal (End Blow) Dimensions (02/2014) - click here LM Horizontal Hanging Brackets (02/2014) - click here LM SPLIT Dimensions (2014) - click here * Important note regarding the Federal Tax Credit: The LM vertical & horizontal package units are built with a CTM (constant torque variable speed motor, also referred to as X13). The federal tax credit is only available on the LM if the motor is upgraded to a CFM variable speed motor. (split units are built with a CFM motor and thus qualify without the upgrade) Note: The federal tax credit expired 12/31/2016 |
Standard Features>MADE IN THE USA
> R410 Two Stage Scroll Compressor > G90 Galvanized Steel Cabinet > Floating Compressor Pan > Tin plated, hair pin air coil with aluminum fin > ECM/Constant Torque (X13) Fan Motor (CFM on Split) > 75VA Transformer > Unit Protection Module > Copper Water Coil > 4 Sided Filter Rack with MERV-5 filter > 1/2" Dual Density Fiberglass Insulation > Stainless Steel Drain Pan > Condensate Overflow Switches > TXV (Extended Range for Geothermal Applications) > Evaporator and Water Side Freeze Protection Sensors Options> Cupro-Nickel Water Coil for Open Loop Application
> Closed Cell Foam Insulation > Compressor Blanket > Internal Factory Installed Electric Heat Packages (5kw-20kw) > External, Field Installed Electric Heat Packages > Hot Gas Reheat > ECM/CFM Variable Speed Fan Motor > Smart Start > Comfort Alert Module > EMS Relay > Pump/Valve Relay > Phase Protection Monitor > Extended Warranty I - up to 5 years on all parts > Extended Warranty II - up to 5 yrs all parts & 5 years labor Bosch-FHP Geothermal LM models:
LM024-1 - (2) TON Electrical: 208-230/1/60 LM024-2 - (2) TON Electrical: 2651/60 LM024-3 - (3) TON Electrical: 208-230/3/60 LM024-4 - (3) TON Electrical: 460/3/60 LM036-1 - (3) TON Electrical: 208-230/1/60 LM036-2 - (3) TON Electrical: 265/1/60 LM036-3 - (3) TON Electrical: 208-230/3/60 LM036-4 - (3) TON Electrical: 460/3/60 LM048-1 - (4) TON Electrical: 208-230/1/60 LM048-3 - (4) TON Electrical: 208-230/3/60 LM048-4 - (4) TON Electrical: 460/3/60 LM060-1 - (5) TON Electrical: 208-230/1/60 LM060-3 - (5) TON Electrical: 208-230/3/60 LM060-4 - (5) TON Electrical: 460/3/60 LM070-1 - (6) TON Electrical: 208-230/1/60 LM070-3 - (6) TON Electrical: 208-230/3/60 LM070-4 - (6) TON Electrical: 460/3/60 |
We make an effort to be clear and accurate based on the information provided by Bosch/FHP. However, specifications and performance data is subject to change without notice. Click below for the most up to date information.
