Light COMMERCIAL Geothermal Heat Pumps

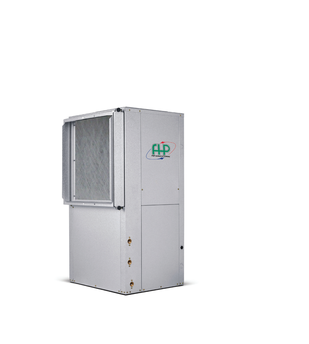

Bosch-FHP Geothermal EP Model - Light Commercial
|
Water-to-Air, Single Stage,
Available in 1/2 thru 6 tons, Vertical and Horizontal Package Units Available Warranty: 1 year parts & 5 years compressor Energy Star Tier 3
This Geothermal Unit
Qualifies for the 30% Federal Energy Tax Credit Note: The federal tax credit expired 12/31/2016
DOCUMENTATION:EP Product catalog - Engineering Data (03/2016)- click here
EP Brochure (Dimensions/Performance) - click here Bosch-FHP COMMERCIAL Warranty & Terms (4/2014) - click here Installation: EP Installation/Wiring Manual (01/2015) - click here Electric Heater Electrical Data - click here Dimensions: EP Vertical Dimensions (11/2010) - click here EP Horizontal Dimensions (11/2010) - click here Bosch-FHP Geothermal EP Models:
EP007-0, -1, -2 - (1/2) TON EP009-0, -1, -2 - (3/4) TON EP012-0, -1, -2 - (1) TON EP015-1, -2 - (1.25) TON EP018-1, -2 - (1.5) TON EP024-1, -2 - (2) TON EP030-1, -2 - (2.5) TON EP036-1, -3, -4 - (3) TON EP042-1, -3, -4 - (3.5) TON EP048-1, -3, -4 - (4) TON EP060-1, -3, -4 - (5) TON EP070-1, -3, -4 - (6) TON |
STANDARD FEATURES:>MADE IN THE USA
> R410 Single Stage Scroll* Compressor > Galvanized Steel Cabinet > Filter Dryer > Floating Compressor Pan > Uncoated Air Coils > Dual Freeze Sensors > ECM/Constant Torque (X13) Fan Motor** > 75VA Transformer > Unit Protection Module > Copper Water Coil > 4 Sided Filter Rack > Dual Density Fiberglass Insulation > Extended Range (TXV) for Geothermal Application > Stainless Steel Drain Pan * Rotary Compressor on sizes 1/2 - 1.5 ton, ** PSC motor on sizes 1/2 - 1 ton OPTIONS:> CFM Variable Speed Motor
> Cupro-Nickel Water Coil for Open Loop Application > Installed Electric Heat Packages > Desuperheater (HRP) > Hot Gas Reheat > Closed-Cell Foam Insulation > Water Differential Switch > Tin Coating on Air Coil > EMS Relay > Aux Pump Interlock Relay > 2" MERV-13 or MERV-8 filter > Non-fused Disconnect > Cooling only unit - no charge > Extended Warranty I - up to 5 years on all parts > Extended Warranty II - up to 5 yrs all parts & 5 years labor Electrical Characteristics:
-0 = 115/1/60; -1 = 208-230/1/60; -2 = 277(265)/1/60 -3 = 208-230/3/60; -4 = 460/3/60 |
We make an effort to be clear and accurate based on the information provided by Bosch/FHP. However, specifications and performance data is subject to change without notice. Click below for the most up to date information.
