Bosch-FHP Geothermal Heat Pumps

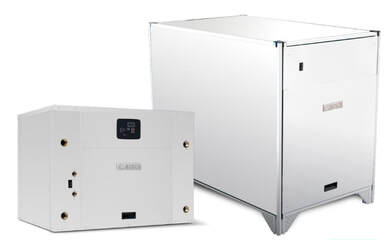

Bosch-FHP Water-2-Water TW Model - Residential
|
Water-to-Water, Two Stage,
Available in 2 thru 5 tons, & 10 tons 10 year parts and labor warranty Energy Star Tier 3
This Geothermal Unit
Qualifies for the 30% Federal Energy Tax Credit (must be installed by 12/31/2025) |
|

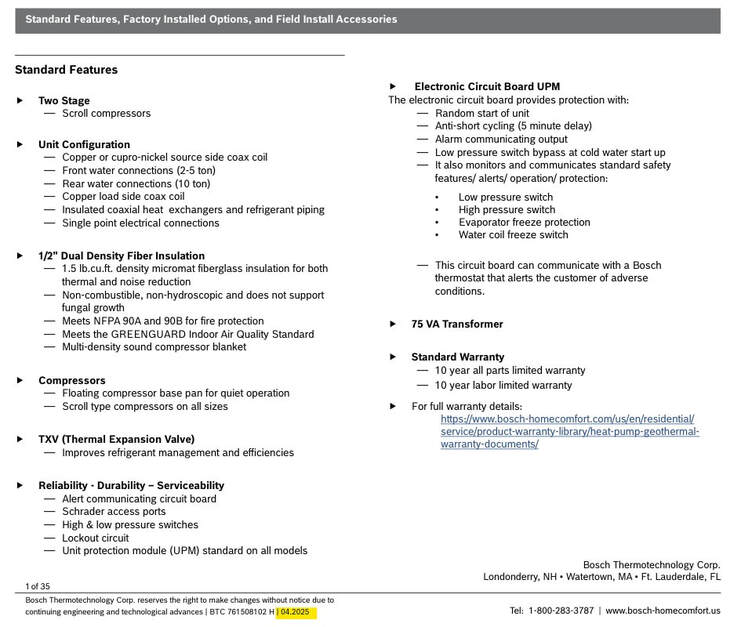

Bosch TW Standard Features

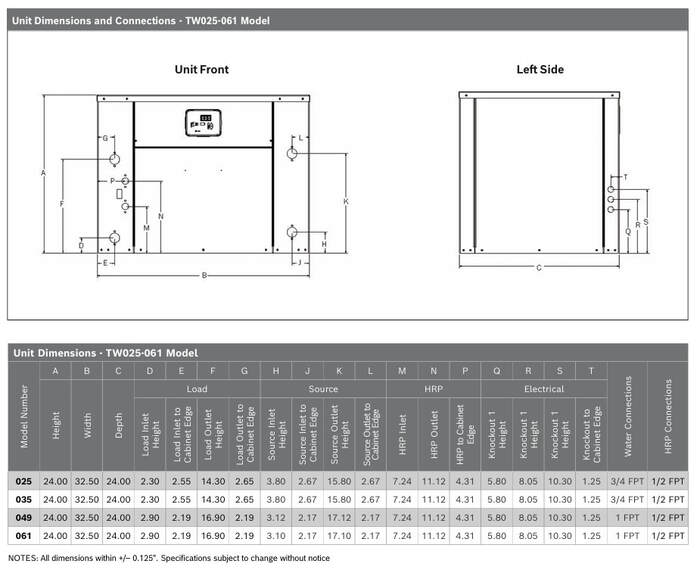

Bosch TW Dimensions 2 ton - 5 ton

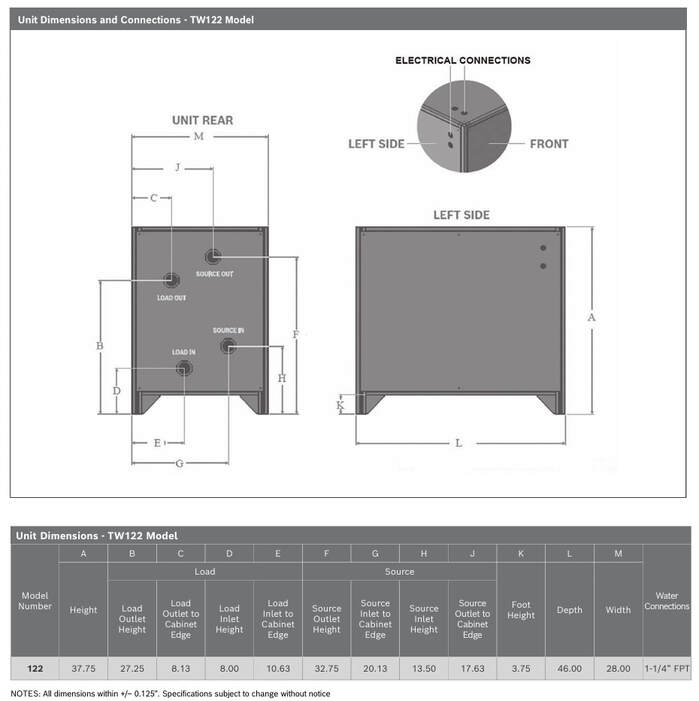

Bosch TW Dimensions 10 ton
Bosch TW Models |
Options: |
|
TW025 - 2 TON TW035 - 3 TON TW049 - 4 TON
TW061 - 5 TON TW0122 - 10 TON (2 COMPRESSORS) Electrical Characteristics: 208-230/1/60 |
> Cupro-Nickel Water Coil for Open Loop Application
> Desuperheater (HRP) > Unit Mounted controller > Pump/Valve Relay Kit > Flow Proving Switch > SmartStart Assist kit |
Documentation:
Note: When the TW began production sizes were offered in 2 through 6 ton sizes (and a 10 ton model). Sometime around 2017-ish, the 6 ton size was discontinued. All TW models were made for 410a refrigerant. They were made with 410a until the end of 2024. Beginning in 2025, the TW model is made with 454b refrigerant. The documentation below is separated by refrigerant type.
Documents for TW model with 454b refrigerant:
TW Engineering Submittal (4/2025) - click here
TW Install Manual (6/2025) - click here
Documents for TW model with 410a refrigerant:
TW Brochure (3-2016) - click here
TW Engineering Submittal (3/2016)- click here
TW 2Ton-6Ton Install & Wiring (02/2016) - click here
TW122 10 Ton Install & Wiring Addendum (1/2012) - click here
TW 2 Ton thru 6 Ton Dimensions - click here
TW 10 Ton Dimensions - click here
Documents for TW model with 454b refrigerant:
TW Engineering Submittal (4/2025) - click here
TW Install Manual (6/2025) - click here
Documents for TW model with 410a refrigerant:
TW Brochure (3-2016) - click here
TW Engineering Submittal (3/2016)- click here
TW 2Ton-6Ton Install & Wiring (02/2016) - click here
TW122 10 Ton Install & Wiring Addendum (1/2012) - click here
TW 2 Ton thru 6 Ton Dimensions - click here
TW 10 Ton Dimensions - click here
We make an effort to be clear and accurate based on the information provided by Bosch/FHP. However, specifications and performance data is subject to change without notice. Click below for the most up to date information.
